MUSMYS / MPA-02
Bring your system together.
Make the music your own.

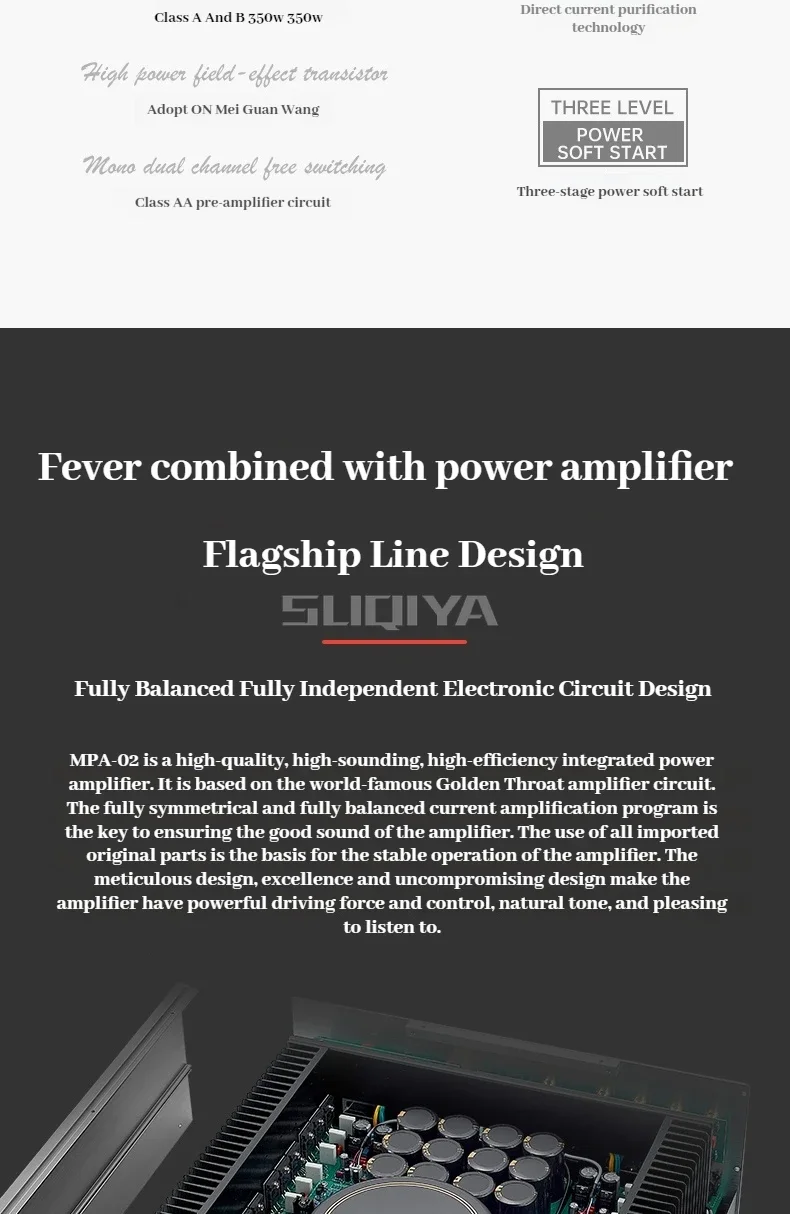

The MPA-02 combines signal control and speaker amplification in a Class AB integrated amplifier. Balanced and RCA input specifications make it an option for a two-channel system with compatible analog sources. Check your speaker requirements, equipment space and mains voltage before ordering.
DESIGN & CONTROL
Built for its role.
Matched to your system.
- Balanced input impedance: 40k ohms; RCA input impedance: 20k ohms.
- Integrated operation combines preamplification and speaker amplification in one component.
- Match the amplifier to your speaker impedance and operating requirements.
- Confirm the required 110V or 220V version and local mains frequency before ordering.
THE SIGNAL PATH
The right component.
In the right place.
The MPA-02 combines signal control and speaker amplification in a Class AB integrated amplifier. Balanced and RCA input specifications make it an option for a two-channel system with compatible analog sources. Check your speaker requirements, equipment space and mains voltage before ordering.

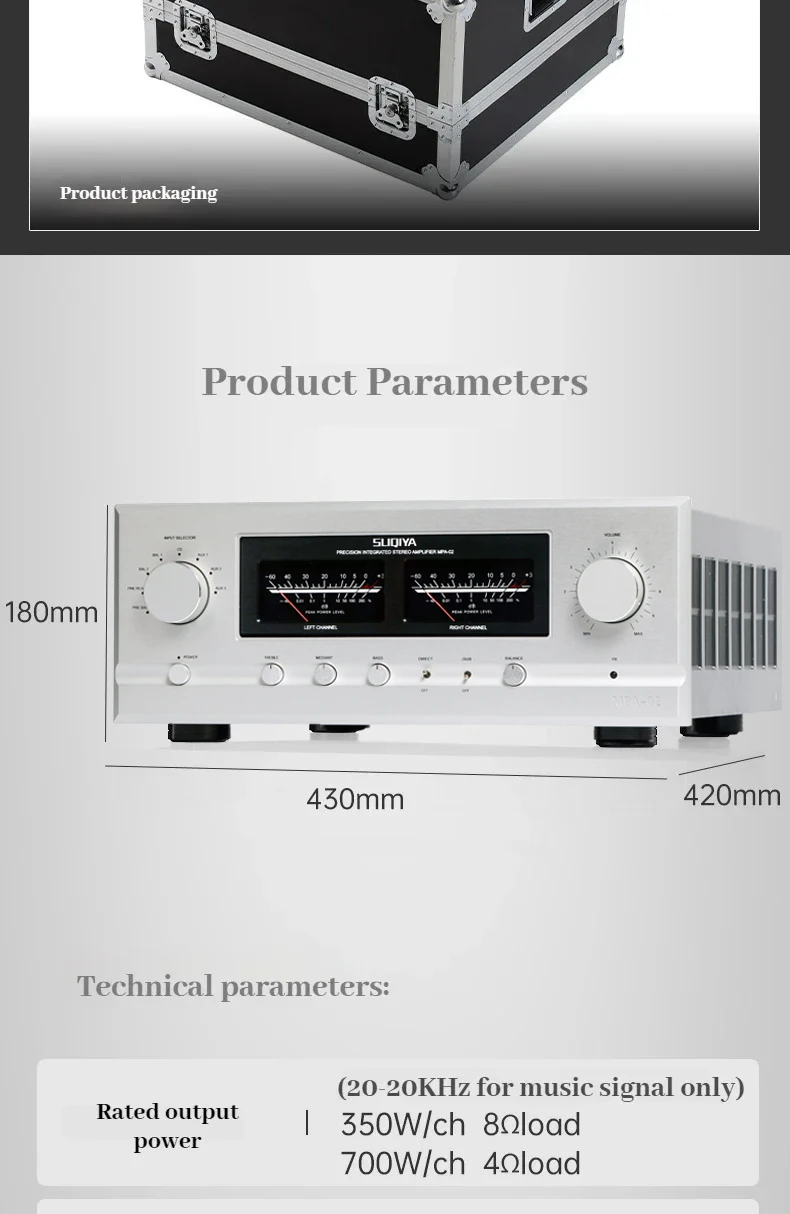

DIMENSIONS & PLACEMENT
Give your system room.
- Dimensions: 430 x 420 x 180mm
- Net weight: 24kg
- Packed weight: 35kg
Use a stable support with sufficient load capacity and leave clearance for connections and ventilation.
TECHNICAL DETAILS
Know the details.
Choose with confidence.
Specifications for MPA-02. Review system matching, operating mode and mains requirements before connection.

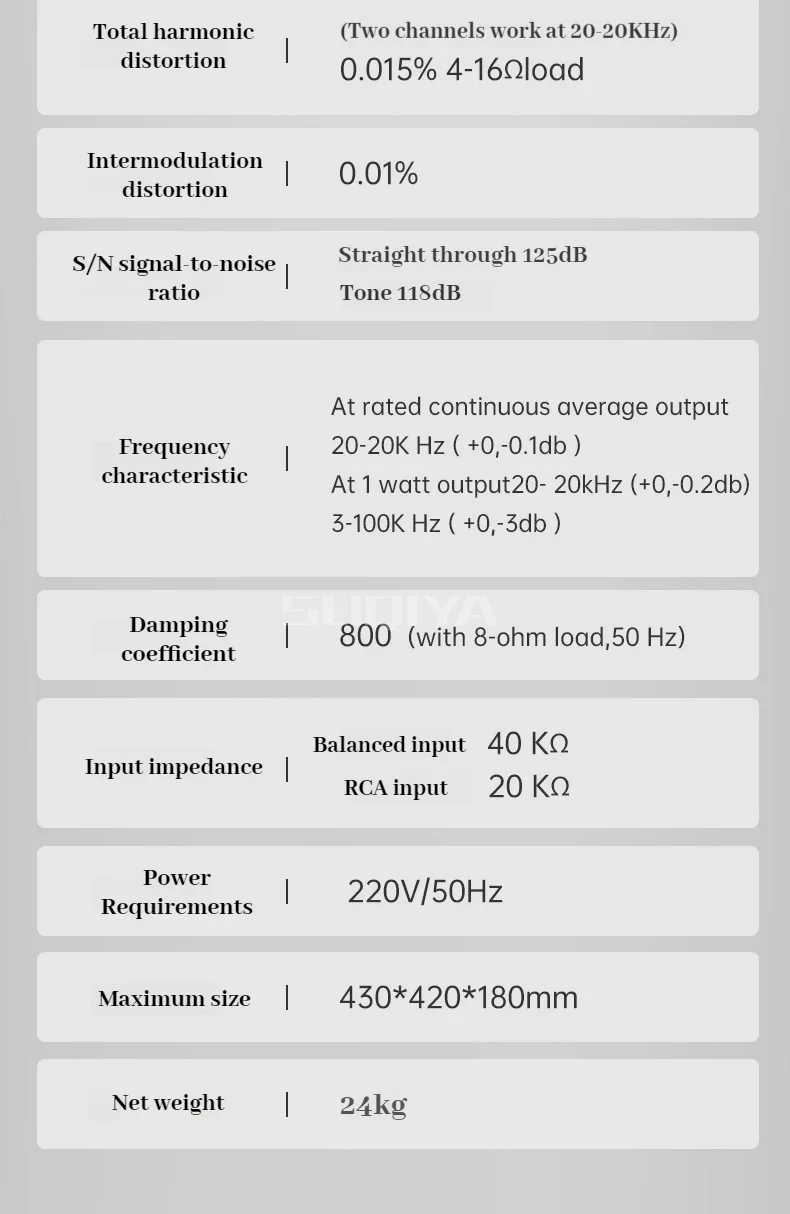

| Output power | 350W per channel into 8 ohms; 700W per channel into 4 ohms, specified for 20Hz-20kHz music signals |
|---|---|
| Total harmonic distortion | 0.015%, both channels at 20Hz-20kHz into 4-16 ohms |
| Intermodulation distortion | 0.01% |
| Signal-to-noise ratio | 125dB direct signal; 118dB audio signal |
| Frequency response at 1W | 20Hz-20kHz, +0/-0.2dB |
| Damping factor | 800 at 8 ohms, 50Hz |
| Dimensions | 430 x 420 x 180mm |
| Net weight | 24kg |
| Packed weight | 35kg |
INDEPENDENT PRODUCT VIDEO
See MPA-02 in action.
Watch the independent product video on YouTube and form your own impression.
Play the MPA-02 review
DELIVERY & AFTERCARE
A considered journey.
From us to your system.
Contact MUSMYS to confirm packaging, destination, freight charges and handling requirements.
- Choose the correct mains-voltage version and confirm local voltage and frequency before ordering.
- International orders may be subject to import duties, customs-clearance charges and local taxes. These charges are the buyer's responsibility.
- Provide an accurate delivery address and monitor order emails in case the carrier needs additional information.
- A power cord is not included.
Questions about system matching, voltage selection or shipping? Contact MUSMYS support before placing your order. Read our Hi-Fi Amplifier FAQ for system preparation.

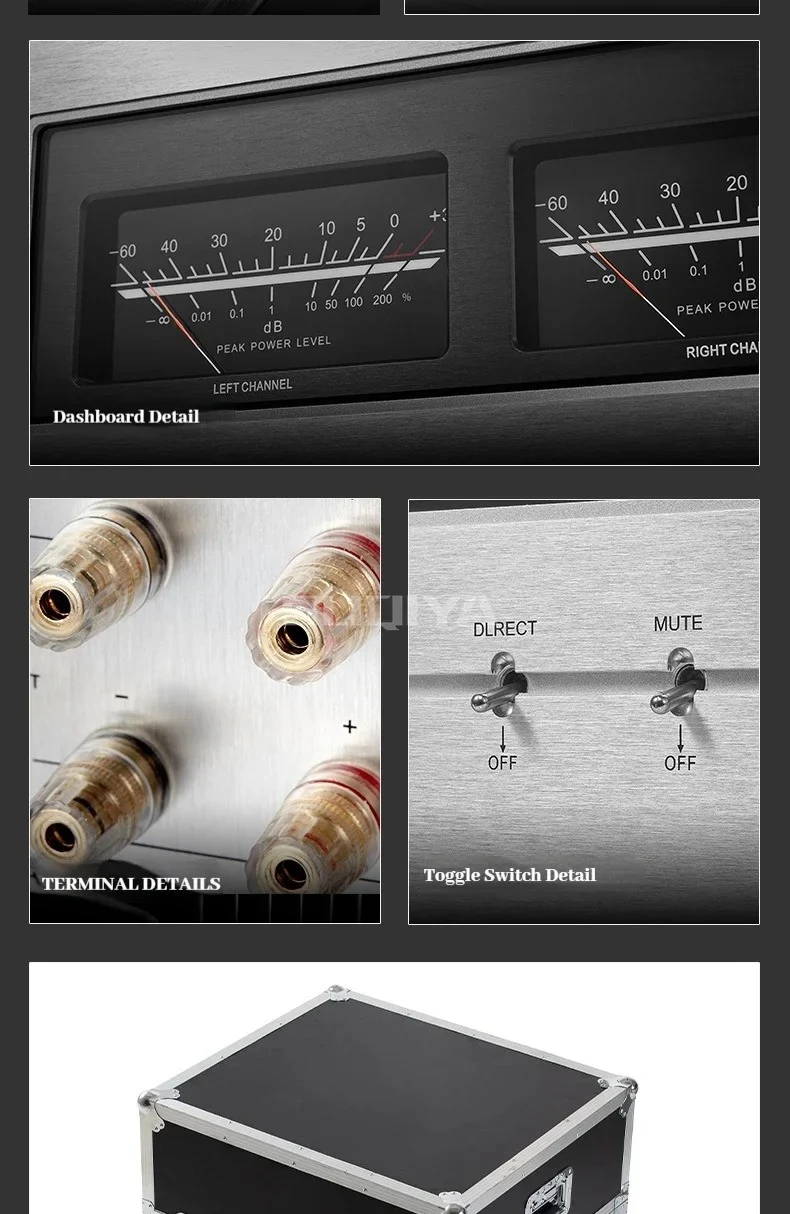

Flight-case packaging.
MPA-02 is supplied in flight-case packaging. The amplifier weighs 24kg; packed weight is 35kg. Confirm delivery and handling arrangements with customer service.
Explore the complete original product image guide
Ready for your next component?
Choose your mains version or talk to MUSMYS about system matching.
