MUSMYS / A-75
A dedicated foundation.
Built around your music.

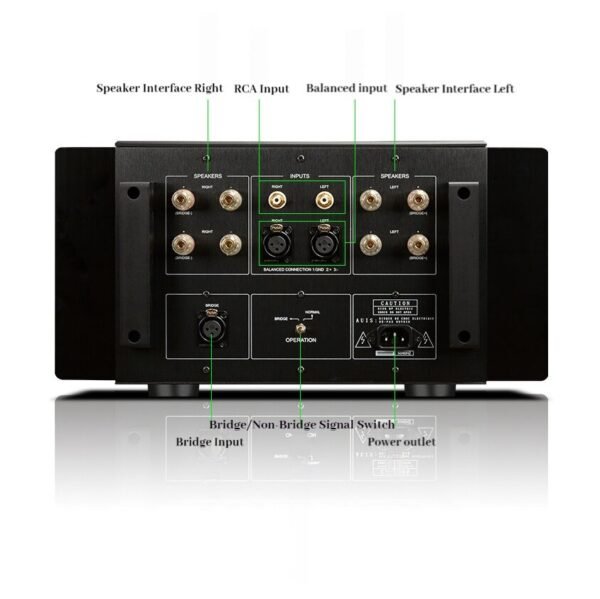

The A-75 is a separate Class A power amplifier for a stereo system with suitable upstream signal and volume control. Balanced and RCA input specifications and selectable gain attenuation help you plan its connection to a compatible preamplifier.
DESIGN & CONTROL
Built for its role.
Matched to your system.

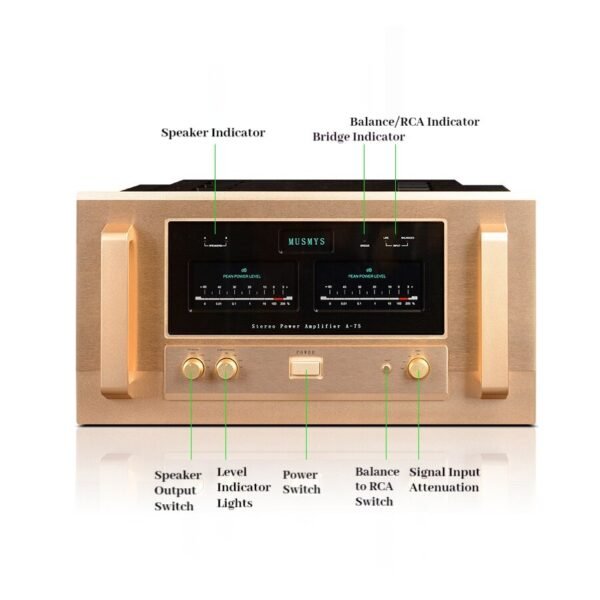

- Gain attenuation settings: maximum, -3dB, -6dB and -12dB.
- Input sensitivity: 0.87V at rated output; 0.11V at 1W.
- Specified static power consumption: 260W; maximum power consumption: 520W.
- Use a suitable preamplifier or compatible volume-controlled source.
- Bridged operation and low-impedance loads require confirmation of the permitted wiring and operating conditions before use.
THE SIGNAL PATH
The right component.
In the right place.
The A-75 is a separate Class A power amplifier for a stereo system with suitable upstream signal and volume control. Balanced and RCA input specifications and selectable gain attenuation help you plan its connection to a compatible preamplifier.
DIMENSIONS & PLACEMENT
Give your system room.
- Dimensions: 430mm W x 500mm D x 225mm H
- Net weight: 28kg
Use a stable support with sufficient load capacity and leave clearance for connections and ventilation.
TECHNICAL DETAILS
Know the details.
Choose with confidence.
Specifications for A-75. Review system matching, operating mode and mains requirements before connection.
| Stereo output | 60W x 2 into 8 ohms; 120W x 2 into 4 ohms; 240W x 2 into 2 ohms, specified at 20Hz-20kHz |
|---|---|
| Frequency response | 20Hz-20kHz, +0/-0.2dB at rated output; 0.5Hz-160kHz, +0/-3dB at 1W |
| Signal-to-noise ratio | 118dB |
| Input impedance | 40k ohms balanced; 20k ohms RCA |
| Damping factor | 1000 |
| Gain | 28dB at the maximum setting |
| Dimensions | 430mm W x 500mm D x 225mm H |
| Net weight | 28kg |
INDEPENDENT PRODUCT VIDEO
See A-75 in action.
Watch the independent product video on YouTube and form your own impression.
Play the A-75 review
DELIVERY & AFTERCARE
A considered journey.
From us to your system.
Contact MUSMYS to confirm packaging, destination, freight charges and handling requirements.
- Choose the correct mains-voltage version and confirm local voltage and frequency before ordering.
- International orders may be subject to import duties, customs-clearance charges and local taxes. These charges are the buyer's responsibility.
- Provide an accurate delivery address and monitor order emails in case the carrier needs additional information.
- A power cord is not included.
Questions about system matching, voltage selection or shipping? Contact MUSMYS support before placing your order. Read our Hi-Fi Amplifier FAQ for system preparation.
